In native mobile app development transitioning from one page/state to another is something that has been supported for a long time. For example, you can do this using Activity transitions for Android. For the web, however, things aren't all that easy.

Yes, we can create transitions between pages using libraries like BarbaJs. But these don't provide any visual connection between page-a and page-b to the user. So to close the gap, a new browser API is in the works: Shared Element Transition API.

The Shared Element Transition is a proposal for a new Web API. It allows for creating transition animations between page navigation and transitioning elements that are present on both pages.

Getting started

To get started with the Shared Element Transition API the following flags have to be enabled in Chrome:

• chrome://flags/#document-transition
• chrome://flags/#enable-experimental-web-platform-features

First of all, we need to check if the browser supports the API, and add a fallback if they don't.

async function navigate() {
    if (!document.createDocumentTransition) {
        updateDOM(); // update the DOM
        return;
    }
}

If it does support the new API, we can use the createDocumentTransition function to create a new transition.

async function navigate() {
    if (!document.createDocumentTransition) {
        updateDOM(); // update the DOM
        return;
    }

    const transition = document.createDocumentTransition();
    await transition.start(() => updateDOM());
}

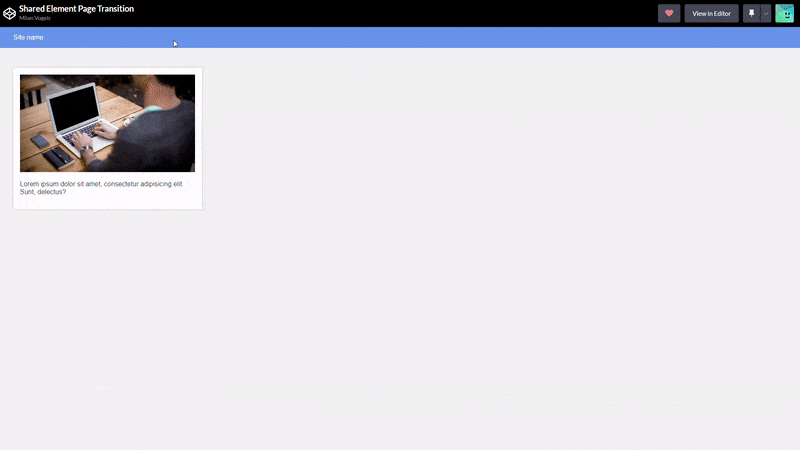

The default transition the API creates is a simple fade. I created a small CodePen example that just toggles between a card view and a detail view by toggling the display style.

Changing the animation

The animation is using CSS. The default browser UA styles will animate ::page-transition-incoming-image from opacity: 0; and ::page-transition-outgoing-image to opacity: 0;.

We can add our own animations by using the following pseudo-element selectors

::page-transition
::page-transition-container(root)
::page-transition-image-wrapper(root)
::page-transition-outgoing-image(root)
::page-transition-incoming-image(root)

For example, we can change the animation to a slide out:

@keyframes slide-to-top {
  to {
    transform: translateY(-100%);
  }
}

::page-transition-outgoing-image(root) {
  animation: 400ms ease-out both slide-to-top;
}

::page-transition-incoming-image(root) {
  animation: none; /* disable default animation */
}

To animate separate elements, instead of the whole page, we can replace root with a page-transition-tag property value you can add to another css selector. The default animation transitions the width and height attributes from the 'before' state to the 'after' state. Also, it animates the transform to update to the position of the targeted element.

In the following example, we add a page-transition-tag: article-img to an image tag.

.foo img {
    page-transition-tag: article-img;
}

::page-transition-outgoing-image(article-image) {}
::page-transition-incoming-image(article-image) {}

This gives us an already pretty cool effect.

If we want specific elements of our site to stay in place during the transition, we have to add a page-transition-tag and contain: paint. Assuming the element won't change between page-a and page-b, the element will now remain in the same place.

.header {
  page-transition-tag: header;
  contain: paint;
}

We can't have the same page-transition-tag being used multiple times on the same page. We'll get an error in the console when starting the transition:

Unexpected duplicate page transition tag: tag-name

So instead of defining it in CSS, we can add it with JavaScript, for example on a click event.

async function navigate() {
    if (!document.createDocumentTransition) {
        updateDOM(); // update the DOM
        return;
    }

    const foo = GetElementYouClickedOn();

    foo.style.pageTransitionTag = 'article-img';

    const transition = document.createDocumentTransition();
    await transition.start(() => updateDOM());

    foo.style.pageTransitionTag = '';
}

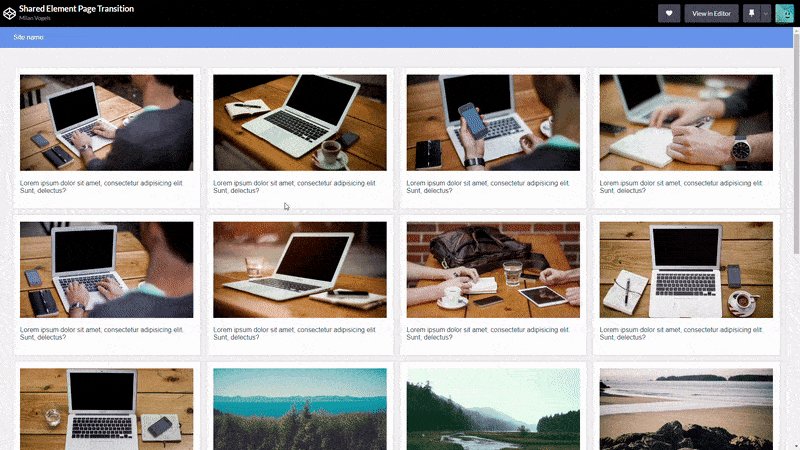

Here's an example of a full grid of cards animating each card's image to the full article image. It still shows the singular article detail view we created, hence the detail image doesn't reflect the card's image.

Multi-page applications

The current iteration of the Shared Element Transition API only supports Single-page applications (SPAs). Support for Multi-page applications (MPAs) is on the roadmap to be added in the future. The use of the API for SPAs or MPAs should work similarly.

Start experimenting!

I'm really excited about this API myself, it allows us to create page transitions that can add context to the user in a non-complicated way without the use of any 3rd party libraries. The Shared Element Transition API is still in an early phase and it will take some time until it's ready for shipping and implemented by other browsers, but we can already experiment a lot with it.

I would like to encourage you to do the same and share your opinions in the Github repository. Can't wait to see what others can create with this new API.

Bright times ahead for page transitions!
